Reference : MEA-NPB-750-48-750W
€298.80 tax. incl.
€249.00
tax. excl.
Brand : MEAN WELL |
Manufacturer Part Number (MPN) : NPB-750-48

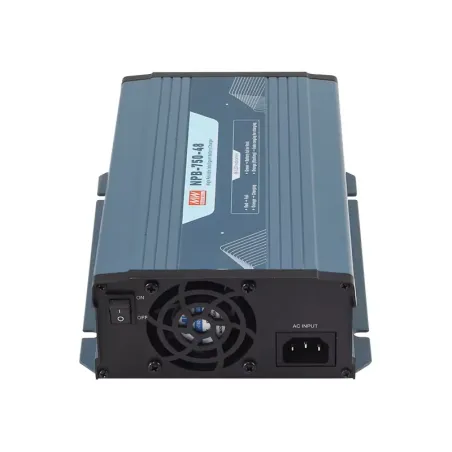

The MEAN WELL NPB-750-48 is a high-reliability smart battery charger (~750W class) designed for 48V systems. It provides selectable 2- or 3-stage charging profiles (built-in curves + programmable profile), a wide charge voltage range (42–80V), and system-level control/monitoring interfaces (CANBus, logic I/O). For 16S LiFePO4 packs (48V nominal), the built-in “AGM/LiFePO4” preset targets a typical end-of-charge voltage of 58.4V, provided the final settings match the battery/BMS manufacturer recommendations.
Overview
- 48V model: 42–80V charge voltage range, 11.3A max (CC), ~759W max.
- 2- or 3-stage charging (DIP switch) + programmable parameters (CC/CV/FV/TC, timeouts).
- Built-in LiFePO4 preset (“AGM/LiFePO4”): Vboost typically 58.4V.
- Auto-ranging (advanced mode) for lithium batteries with BMS.
- Interfaces: CANBus, Remote ON/OFF, TTL “Battery Full” and “Charger OK”, NTC (RTH).
- Protections: short-circuit, over-voltage, input under-voltage, battery under/over-voltage, over-temperature, reverse polarity.
System integration
Typical use: 16S LiFePO4 packs (48V nominal) with BMS. A common end-of-charge voltage is around 58.4V (16×3.65V). The NPB-750-48 supports this via the LiFePO4 preset and its 42–80V charge voltage window.
Integration note: final settings must follow the battery/BMS manufacturer recommendations. Validate on a test bench if needed.
- If float is not desired: use 2-stage mode or program FV (float) per your BMS/battery strategy.
- With 11.3A max, check the intended C-rate vs capacity.
Charging profiles & settings
The charger provides 2-stage (CC → CV) or 3-stage (CC → CV → Float) charging. Built-in curves are selected via DIP switch; a profile can be customized (SBP-001 and/or CANBus depending on integration).
Brand
MEAN WELL
Technical documentation
MEAN WELL - NPB-750-48-750W
EVEA Distribution – Datasheet
